How does a three way light switch work?
Three-Way and Four-Way Switches–How They Work 1 The Light Comes “On” 2 Turning the Light “Off” From Another Switch 3 The Light Comes “On” Again 4 Four-Way Switches 5 A Four-Way Switch in the Circuit 6 Turning the Light “Off”
How does a 2 way throw switch work?
It is a standard single pole double throw switch with three terminals. The three terminals are usually named COM, L1 and L2, but sometimes the terms COM, 1 Way and 2 Way are also used. In one position, the COM and L1 terminals are connected, while in the second position, the COM and L2 terminals are connected.
What causes a three way switch to not turn on?
When you encounter what was supposed to be a three-way circuit, and you can turn it “on” at one of the switches, but not at the other switch, unless the first switch is already “on,” the problem is usually that one of the wires going into the switch is on a terminal for one of the two wires going out of the switch.
Why does my 3 way light bulb not work?

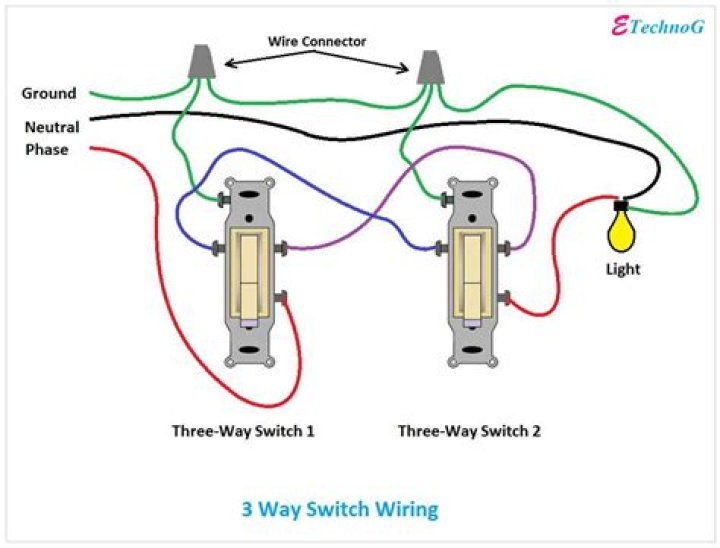

It can also help to diagnose a three-way switch that does not work because someone wired the circuit incorrectly. This is the basic circuit for a three-way switch. The gray circle represents a light bulb controlled by the two switches. It is gray because it is “off.”
What does it mean to have three way light switch?
If there are lights in your house that can be controlled from two different light switches (as opposed to just one), then the light is commonly referred to as a three-way light, and the switches are referred to as three-way light switches. Here’s how they work.
How does a four way switch work in a circuit?
A four-way switch has the effect of reconnecting the two wires running between two thee-way switches. Four-way switches accomplish the same thing as if someone ran to one of the three-way switches and flipped it. Here you see a four-way switch added to our circuit.
How does a light switch work and how does it work?
How a Light Switch Works. However, a light switch is installed in line with that hot wire. So when the light switch is off, it breaks the connection of the hot wire so that power can’t get to the light fixture. When the switch is turned on, the hot wire is reconnected, thus supplying power to the light fixture.
When you encounter what was supposed to be a three-way circuit, and you can turn it “on” at one of the switches, but not at the other switch, unless the first switch is already “on,” the problem is usually that one of the wires going into the switch is on a terminal for one of the two wires going out of the switch.
