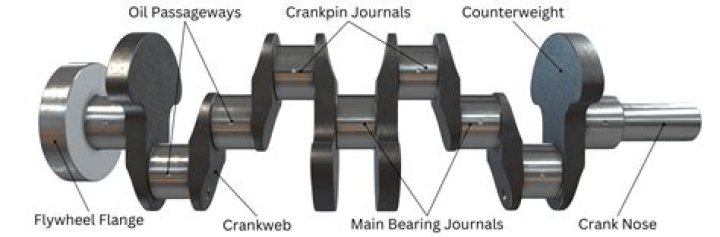

What are the four major parts of a crankshaft?
What is attached to the engine crankshaft?
The crankshaft is attached to the engine by large bearings at either end. It connects to the flywheel, and through that, the clutch. When the engine is running the crankshaft rotates rapidly, driving the pulley, which moves the belt, and then the pulley on the end of the supercharger.
What supports the crankshaft in the crankcase?
The part of the crankshaft that supports the crankshaft in the engine block by bearing inserts are called main journals. The part of the crankshaft that supports the crankshaft in the engine block by bearing inserts are called main journals. This answer has been confirmed as correct and helpful.
What is the firing order of a 4 cylinder engine?
Most 4-cylinder engines have a firing order of 1-3-4-2 although other firing orders such as 1-3-2-4, 1-4-3-2, 1-2-4-3 are possible. Consider the inline 4 engine in Figure 1. The cylinders are usually numbered 1234 from the front of the engine where the accessory drives (pulleys) are installed.
What are the types of crankshaft?
The crankshaft There are two types of crankshaft, the monolithic type (Fig. 8.1), used for multi-cylinder engines, and the assembled type (Fig. 8.2) fabricated from separate elements, which is mainly used for motorcycles.
What is the end of the crankshaft called?
The crankshaft con-rod mechanism transforms reciprocative motion to rotational motion. The con-rod connects the piston to the crankshaft to transfer combustion pressure to the crankpin. There are bearing portions at both ends, the piston side is called the small end, and the crankshaft side, the big end. 9.1.
How smooth does a crankshaft have to be?
Crankshaft journal surfaces should be ground and polished to a surface finish of 15 micro inches roughness average Ra or better. Journals on highly loaded crankshafts such as diesel engines or high performance racing engines require a finish of 10 micro inches Ra or better.
What is a crankshaft throw and how do you determine the throw of a crankshaft in different engines?
The throw is the measurement from the center of the crankshaft to the center of the crankpin journal, which is used to determine the stroke of an engine. The throw is equal to one-half the stroke. The longer the throw, the greater the stroke, or distance, a piston travels.
What made a throw on the crankshaft?
Two crank cheeks and a crankpin make a throw. When a force is applied to the crankpin in any direction other than parallel or perpendicular to and through the center line of the crankshaft, it causes the crankshaft to rotate.
Is there a 7 cylinder engine?
A straight-seven engine or inline-seven engine is a straight engine with seven cylinders. It is more common in marine applications because marine engines are usually based on a modular design, with individual heads per cylinder.
What is the firing order of a V8?
Most Ford V8: Counter-clockwise 1-5-4-2-6-3-7-8.
What are the three types of crankshaft?
There are three different types of cranks you can use in an engine.
- Cast Cranks. These types of cranks are around for a long time and are found in a lot of diesel and petrol engine.
- Forged Cranks. These are a more robust crankshaft than a cast crank.
- Billet Cranks.
Where is the crankshaft found?
What Is a Crankshaft? Located in the “bottom end” of an engine, the crankshaft harnesses the tremendous force of combustion (the violent burning of the air and fuel in the combustion chamber) by thrusting the pistons downward, causing the crankshaft to rotate. This rotation is the power source of an engine.
Is the crankshaft on top or bottom?
Located in the “bottom end” of an engine, the crankshaft harnesses the tremendous force of combustion (the violent burning of the air and fuel in the combustion chamber) by thrusting the pistons downward, causing the crankshaft to rotate. This rotation is the power source of an engine.
Does my crankshaft need grinding?
Upon initial inspection of the crankshaft, with the use of the micrometer, the machinist will determine what bearings need grinding. Indicators that a journal needs grinding include if the surface has wear and make it rough to the touch.
How do you determine the throw of a crankshaft?
What are the three journals on the crankshaft?
What are the three journals of the crankshaft? Features of a crankshaft include the crankpin journal, throw, bearing journals, counterweights, crankgear, and a power take-off (PTO). A crankpin journal is a precision ground surface that provides a rotating pivot point to attach the connecting rod to the crankshaft.
What are the three journals of the crankshaft?
Has anyone ever made a 7 cylinder engine?
Only one straight-seven engine for land propulsion is known to be in production, the AGCO Sisu 7-cylinder diesel engine. The straight-7 configuration is a lower investment because Sisu has reused cylinder heads from their I3 and I4 diesel lineups.
