What is the purpose of decoder?

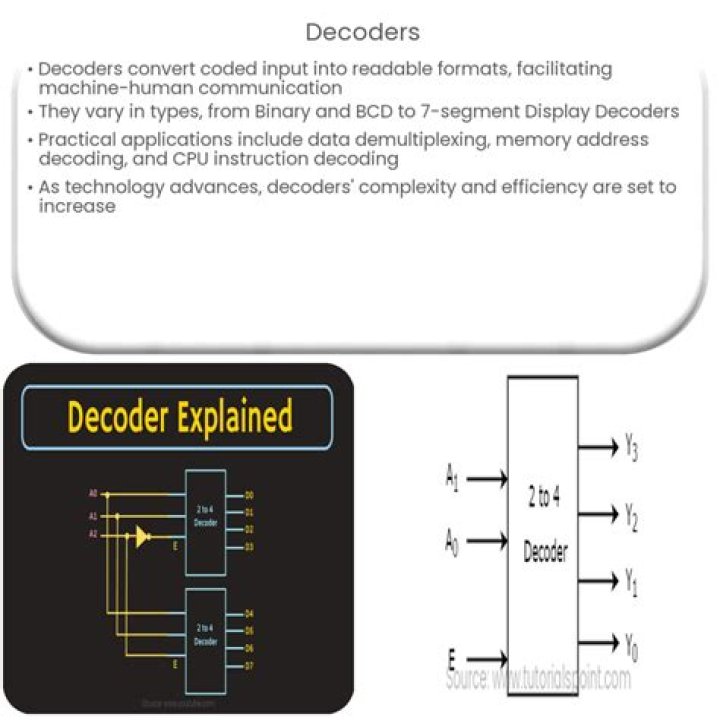

A decoder is a device that generates the original signal as output from the coded input signal and coverts n lines of input into 2n lines of output. An AND gate can be used as the basic decoding element because it produces a high output only when all inputs are high.
What is the purpose of decoders input?
The name “Decoder” means to translate or decode coded information from one format into another, so a binary decoder transforms “n” binary input signals into an equivalent code using 2n outputs.
Why is a decoder used in digital electronics?
Decoder is a combinational circuit that has ‘n’ input lines and maximum of 2n output lines. One of these outputs will be active High based on the combination of inputs present, when the decoder is enabled. That means decoder detects a particular code.
What is difference between decoder and multiplexer?
Multiplexer is a device which consists of multiple input channels thru single line while decoders consist of multiple inputs passing thru multiple output. 3. Multiplexer converts inputs from unary codes (initial) to binary codes while decoder converts binary codes to inputs.
What makes encoder different from a decoder?
On the contrary, a decoder accepts binary code as its input. An encoder is a device that converts the active data signal into a coded message format. However, a decoder performs inverse operation of the encoder and thus converts the coded input into original data input.
How is multiplexer different from a decoder?
Decoder is a logic circuit which n input lines into m output lines….Difference between of Multiplexer and Decoder :
| S.NO. | Multiplexer | Decoder |
|---|---|---|
| 1. | MUX accepts several inputs and allow only one data output. | It takes n input binary code and convert it into a corresponding outputs. |
How does JK flip flop work?
A J-K flip-flop is nothing more than an S-R flip-flop with an added layer of feedback. This feedback selectively enables one of the two set/reset inputs so that they cannot both carry an active signal to the multivibrator circuit, thus eliminating the invalid condition.
Why Enable is used in decoder?
A decoder with an enable input can function as a Demultiplexer. A demultiplexer is a circuit that receives information on a single line and transmits this information on one of 2n possible output lines. Selection of a specific output line is controlled by the bit values of n selection lines.
Is decoder a Demux?
Contents: Demultiplexer and Decoder A demultiplexer is a circuit which takes only one input and switches it to one of the several outputs with the help of selection lines. A decoder is the circuit which decodes the input signal fed to it with the help of control signal. A demultiplexer accepts the data as input.
Can demux be used as decoder?
Selection of a specific output line is controlled by the bit values of n selection lines. E line is taken as a data input line and line A & B are taken as the selection lines. Decoder/Demultiplexer circuits can be connected together to form a large decoder circuit.
Can an encoder be transducer?
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to analog or digital output signals. The output of an absolute encoder indicates the current shaft position, making it an angle transducer.
What is the difference between priority encoder and normal encoder?
An ordinary encoder has a number of input lines but only one of them is activated at a given time. A priority encoder can have more than one input activated at the same time.
