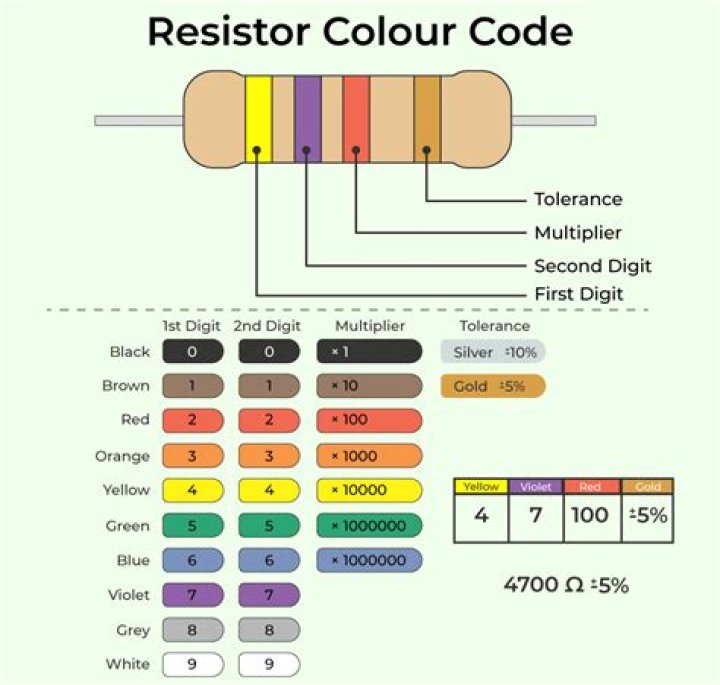

What is the resistor Colour code and what is it used for?
An electronic color code is used to indicate the values or ratings of electronic components, usually for resistors, but also for capacitors, inductors, diodes and others. A separate code, the 25-pair color code, is used to identify wires in some telecommunications cables.
Which Colour represents 7 in resistor color code?
Violet
Resistor, capacitor and inductor
| Color | Significant figures | Tolerance |
|---|---|---|
| Yellow | 4 | – |
| Green | 5 | ±0.5% |
| Blue | 6 | ±0.25% |
| Violet | 7 | ±0.1% |
What do the colors on a resistor mean?
Most resistors have four stripes of color. The first three stripes indicate the resistance value, and the fourth stripe indicates the tolerance. Some resistors have five stripes of color, with four representing the resistance value and the last one the tolerance.
What is the code for colors?
Major hexadecimal color codes
| Color Name | Color Code |
|---|---|
| Red | #FF0000 |
| Cyan | #00FFFF |
| Blue | #0000FF |
| DarkBlue | #00008B |
How many types of color code resistors are there?
To calculate the color code of the above 6 color-band resistors, 6 band resistors consist of colors: green, blue, black, yellow, gold, and orange.
What is color code?
Images: Color Codes A HTML color code is an identifier used to represent a color on the web. Color codes are ways of representing the colors we see everyday in a format that a computer can interpret and display. Commonly used in websites and other software applications, there are a variety of formats.
What is color coding?
Color coding in the workplace mainly concerns the safety and disaster preparedness of the workforce. The concept consists of assigning different colors to indicate various risks, dangers, and safety hazards either up-close or from a distance (even when vision is compromised and reading safety signs could be difficult).
What color is a 330 ohm resistor?
| Band | Value |
|---|---|
| 2nd Orange | 3 |
| 3rd Brown | 10 |
| 4th gold | +-5% |
| 330 Ohm tolerance: +-5% |
What color is a 100 ohm resistor?
The color code for the four bands 100 Ohm resistor is brown, black, brown, gold. 4-band 100 ohm resistor color code is calculated as: 1st-band= Brown= 1 (1st digit) 2nd-band= Black= 0 (2nd digit)
What is color code chart?
RGB color table
| Color Name | Hex Code #RRGGBB | Decimal Code R,G,B |
|---|---|---|
| olive | #808000 | (128,128,0) |
| yellow | #FFFF00 | (255,255,0) |
| yellow green | #9ACD32 | (154,205,50) |
| dark olive green | #556B2F | (85,107,47) |
What are the 4 types of resistors?
Types of Resistors
- Fixed Value Resistors. These are the predominant type of resistor configuration, and as the name suggests, they have a fixed resistance value.
- Variable Resistors.
- Resistor Networks.
- Carbon Film Resistors.
- Metal Film Resistors.
- Wirewound Resistors.
- Metal Oxide Resistors.
- Metal Strip Resistors.
What is a color code?
Is standard for color coding?
This Indian standard covers the colour scheme for the identification of the contents of pipelines carrying fluids in domestic and public buildings and such industrial installations where a specific colour code does not exist.
What is the purpose of color coding?
Color-coding separates the tools used in one type of task or location from another, helping prevent tools from becoming sources of cross-contamination. How Is Color-Coding Being Used? Color-coding supports and strengthens the Hazard Analysis and Critical Control Points (HACCP) Plan.
How do I know if I have a 330 ohm resistor?
Thus, for 330-ohm resistor, 1st digit is ‘ 3 ‘, ∴ look for color in a chart with value 3, then it’s your 1st color(say orange). The next 2nd digit is ‘ 3 ‘, ∴ look for color in a chart with value 3, then it’s your 2nd color (say orange).
What is a 330 ohm resistor used for?
330 ohms may be used by some people as a “get you going” value that works “well enough” in many cases. The purpose of the resistor is to “drop” voltage that is not required to operate the LED, when the LED is operating at the desired current.
How can you tell if a resistor is 100K ohm?
100k ohm resistor color code:
- Brown, Black, Yellow, Gold.
- And tolerance considered as ==> 5% of 100K ==>5000Ω
- Other methods:
- Remove the resistor from PCB then test it with a DMM in resistance mode and note down its value.
What is a 100 ohm resistor used for?
Commonly used in breadboards and other prototyping applications, these 100 ohm resistors make excellent pull-ups, pull-downs and current limiters. These thick-lead versions of the resistors fit snugly into a breadboard with very little movement, so you should have few to no issues using them in your next project!
