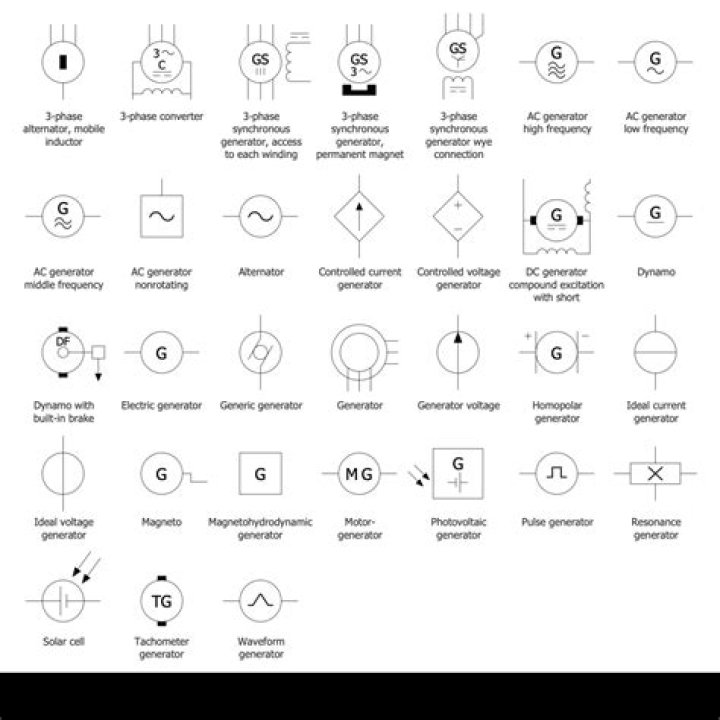

What is the symbol for 3 phase?
A three-phase system may be arranged in delta (∆) or star (Y) (also denoted as wye in some areas).
What is the equation for 3 phase power?
3-Phase Calculations For 3-phase systems, we use the following equation: kW = (V × I × PF × 1.732) ÷ 1,000. Again, assuming unity PF and solving this equation for “I,” you get: I = 1,000kW ÷ 1.732V.
What is the color code for 3 phase wiring?
yellow
Phase 3 – Phase 3 wiring should be yellow. Neutral – Neutral wires should be grey. Ground – Ground wiring should be green, or green with a yellow stripe.
What is a 3 phase power line?
Three-phase electric power is a common type of alternating current used in electricity generation, transmission, and distribution. It is a type of polyphase system employing 3 wires (or 4 including an optional neutral return wire) and is the most common method used by electrical grids worldwide to transfer power.
How many volts is a 3 phase line?
For three-phase, you connect line 1 to line 2 and get 208 volts. At the same time, you [can] connect line 2 to line 3 and get 208 volts. And you [can] connect line 3 to line 1 and get 208 volts.
What is 3 phase 4 wire distribution system?
Three phase, 4-wire distribution system This system uses star connected phase windings and the fourth wire or neutral wire is taken from the star point. If the voltage of each winding is V, then the line-to-line voltage (line voltage) is √3V and the line-to-neutral voltage (phase voltage) is V.
How do I get 3 phase power in my house?
If you have just a few three phase peices of equipment you can use VFD’s as discussed above or you can use a motor generator either static (solid state) or rotary (mechanical). You can Google motor generator and it will provide you with all the information you need. You could also purchase a three phase generator.
What is the color code for wiring?
US AC power circuit wiring color codes The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What are the new 3 phase Colours?
For three-phase cables the phase colours are brown, black and grey, instead of red, yellow and blue, respectively, and the neutral colour is now blue instead of black.
How many volts is a 3-phase line?
What is 3-phase 4 wire distribution system?
Is 3 phase 415V or 440V?
3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts. 440V in 3 phase system is line to line voltage if you calculate per phase voltage then you will get approximate same value as for 1 phase system.
What are the voltages of three phase power lines?
Another popular wye-connected three-phase, four-wire system is rated at 277/489 V. Feeder and branch circuits connected to this supply can provide: 277 V, single phase, two-wire 480 V, single-phase, two-wire 480 V, three-phase, three-wire 277/480 V, three-phase, four-wire
What’s the color code for a single phase power supply?
In case of single phase power supply, Black wire is used as the line wire and in case of 220V supply, Red wire is used as the secondary line conductor. IEC Color Code for most of the European Union (Including UK from 2004) Most of the European Countries follow the International Electro-technical Commission’s electrical wiring color code.
Do you need a three phase power line in New York?
In New York State, solar developers are primarily interested in building relatively small solar farms (5 MWac ). While large farms must connect to high-voltage transmission lines, these smaller farms must connect to three-phase distribution lines. Ideally, as a landowner you would have three-phase lines on or very close to your property.
What is the phasor diagram for three phase power?
If you have balanced three-phase power, where all three phase voltages are equal in magnitude and 120° apart in phase, then: To see why, consider the phasor diagram: Applying some basic trig: Line to line voltage for a 3phase network (120deg separation) is sqrt (3)*phase voltage.
How are three phase power lines the same?
All three phases share a single neutral line and have the same voltage, but they are 120 electrical degrees out of phase with each other. The local electrical utility usually decides where the three-phase and single-phase services are to be located in the area that it serves.
In case of single phase power supply, Black wire is used as the line wire and in case of 220V supply, Red wire is used as the secondary line conductor. IEC Color Code for most of the European Union (Including UK from 2004) Most of the European Countries follow the International Electro-technical Commission’s electrical wiring color code.
When to use HV for Phase 3 wiring?
*USA (HV) This should be used for 277/480VAC 3 PHASE. In the USA, color codes are usually utilized for power wires in “branch circuits,” the wiring between the last protective device. These are the types of wire colors commonly found in home and office settings.
What are the three phase color codes for AC?
White = Neutral “N” GREEN, BARE or GREEN / YELLOW = Ground “PG” Three Phase Wiring Color Codes. Three Phase 208V AC: BLACK = Phase 1 , Hot 1 or Line 1 “L1” RED = Phase 2 , Hot 2 or Line 2 “L2” BLUE = Phase 3 , Hot 3 or Line 3 “L3” White = Neutral “N” GREEN, BARE or GREEN / YELLOW = Ground “PG” Three Phase 277V & 480 V AC:
What is the color code for 208v 3 phase?
The USA has their own wiring colors for electrical circuits, black, red, and blue are used for 208 VAC three-phase; brown, orange and yellow are used for 480 VAC.
What is the color code for 1 phase wiring?
Red
The color code for AC power wiring is similar to the code used in the United States: Phase 1 – Red. Phase 2 – Black. Phase 3 – Blue.
3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts.
What is L and N in electricity?
The N & L stand for Neutral and Load. With your AC line in you should have three wires. Neutral, Load, and Ground. If your wires are color coded for the US then the black wire is Load or Hot, the white wire is Neutral, and the green wire is Ground.
What color is the neutral?
In the context of interior design, neutral means without color. Neutrals such as beige, ivory, taupe, black, gray, and shades of white appear to be without color, but in many applications these hues often have undertones.
What are the color codes for wiring?
The color code for AC power wiring is similar to the code used in the United States:
- Phase 1 – Red.
- Phase 2 – Black.
- Phase 3 – Blue.
- Neutral – White.
- Ground – Green with Yellow Stripe.
Can you get 240 volts from 3 phase?
240V 3 Phase Open Delta (3P4W) It’s like 120 / 240V but also provides 240V 3 Phase for large loads (Machinery, etc.). It’s often called “Wild Leg” of “High Leg” Delta because one leg (Phase B) is different. THE GOOD – It’s inexpensive for the power company and it provides 120V / 240V Single Phase and 240V 3 Phase.
What is a 3 phase 3 wire system?
In a three-phase system, three circuit conductors carry three alternating currents (of the same frequency) which reach their instantaneous peak values at different times. Taking one conductor as the reference, the other two currents are delayed in time by one-third and two-thirds of one cycle of the electrical current.
Does 3 phase have 3 wires?
The three-phase system has four wires. Three are conductors and one is neutral. You can set up a three-phase system as a single-phase one, but you can’t do the reverse.
What is the difference between 1 phase and 3 phase power?
What is the difference between single-phase and three-phase power supplies? Single-phase power is a two-wire alternating current (ac) power circuit. Three-phase power is a three-wire ac power circuit with each phase ac signal 120 electrical degrees apart.
What is the difference between 2 phase and 3 phase power?
Three-phase electric power requires less conductor mass for the same voltage and overall power, compared with a two-phase four-wire circuit of the same carrying capacity. Two-phase circuits typically use two separate pairs of current-carrying conductors.
Which Colour is L and N?
US AC power circuit wiring color codes
Function label Color, common Protective ground PG bare, green, or green-yellow Neutral N white Line, single phase L black or red (2nd hot) Line, 3-phase L1 black
