What is the function of a pear shaped cam?

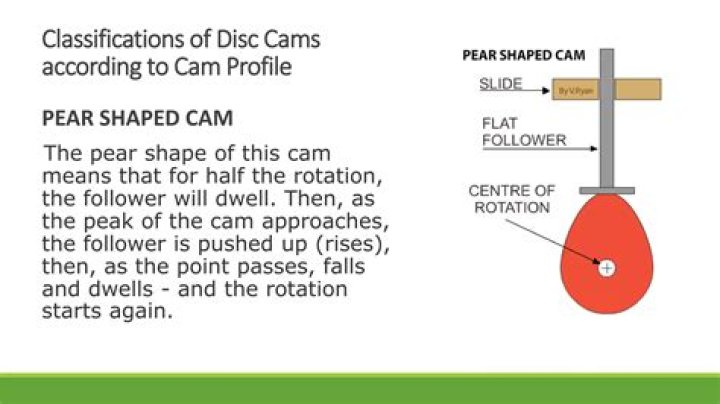

Pear cams are called this as they have the shape of a pear. It remains stationary for half a turn then gently rises and falls. These are used to make carousel horses rise and fall.
What other things might use a cam mechanism?
Cams are commonly used in engines to control valves (in which the valve is the follower), sewing machines, children’s toys and many other mechanical applications. The shapes of individual Cams are designed to produce specific types of motion.
What is the one cycle of a cam?
When the cam turns through one motion cycle, the follower executes a series of events consisting of rises, dwells and returns. Rise is the motion of the follower away from the cam center, dwell is the motion during which the follower is at rest; and return is the motion of the follower toward the cam center.
What does a high-speed cam require?
A high-speed camera is a device capable of capturing moving images with exposures of less than 1/1,000 second or frame rates in excess of 250 frames per second. It is used for recording fast-moving objects as photographic images onto a storage medium.
Where do we use cam mechanism?
Cam mechanisms are used in various areas of machine building, such as internal-combustion engines, metal-cutting machines, and machines of the food industry, in which the cam mechanism performs a programmed operation, as well as in automated machines, in which cam mechanisms perform control functions, connecting and …
Which type of cam is used for high-speed engine?
Cycloidal motion curve has the best dynamic characteristics. The acceleration is finite at all times and the starting and ending acceleration is zero. It will yield a cam mechanism with the lowest vibration, stress, noise and shock characteristics. Hence for high-speed applications, this motion curve is recommended.
What is the process of cam?
Computer Aided Manufacturing (CAM) is the use of software and computer-controlled machinery to automate a manufacturing process. Machinery that can turn raw material into a finished product. Post Processing converts toolpaths into a language machines can understand.
What does a high speed cam require?
What is angle of ascent in cam?
The angle of Ascent It is the angle through which the cam turns during the time the follower rises. The angle of Dwell It is the angle through which the cam turns while the follower remains stationary at the highest or the lowest position.
What are 3 disadvantages of cam?
Disadvantages of CAM
- Computer errors are possible.
- CAD and CAM software can be expensive.
- Training is expensive.
- Computers and controllers to run the software and CNC machinery for manufacturing is expensive.
What are 3 advantages of cam?
Computer aided manufacture (CAM)
Advantages of CAM Disadvantages of CAM Fast and accurate production Expensive to set up Machines can run constantly on repetitive tasks Needs a skilled workforce of engineers What is cam stands for * 1 point?
Computer Aided Manufacturing (CAM): The Complete Introduction for the Beginner’s Mind.
