What is the type of motion in jaw crusher?
The movement of the jaw can be quite small, since complete crushing is not performed in one stroke. The inertia required to crush the material is provided by a weighted flywheel that moves a shaft creating an eccentric motion that causes the closing of the gap.
Which jaw is fixed in jaw crusher?

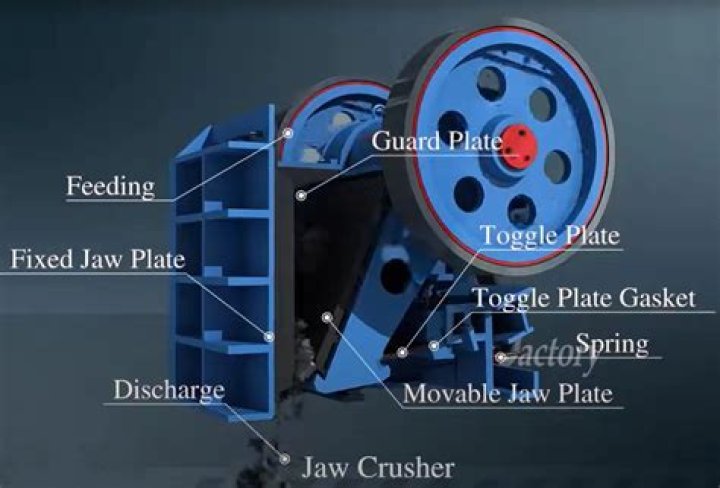

The main crushers’ types are: Jaw crusher: The material is crushed between a fixed jaw and a mobile jaw. The feed is subjected to repeated pressure as it passes downwards and is progressively reduced in size until it is small enough to pass out of the crushing chamber.
What is crushing operation?
Crushing is the process of transferring a force amplified by mechanical advantage through a material made of molecules that bond together more strongly, and resist deformation more, than those in the material being crushed do.
How does a mobile crusher work?
The work by applying strong compressive force against the material through a pair of jaws, one stationary fixed jaw and one moveable jaw. The material is fed through a V-shaped crushing chamber into the jaws, where the exit at the bottom is narrower than the opening at the top.
How many types of jaw crushers are there?
There are two basic types of jaw crushers: single toggle and double toggle. In the single toggle jaw crusher, an eccentric shaft is on the top of the crusher. Shaft rotation causes, along with the toggle plate, a compressive action. A double toggle crusher has two shafts and two toggle plates.
Which type jaw crusher does not have problem of choking?
Blake jaw crusher: In the Blake or jaw crusher the moveable jaw is pivoted at top. The greatest amount of motion is at the bottom which means it has the little tendency to choke.
Are employed for operation of jaw crusher?
A crusher is a machine designed to reduce large rocks into smaller rocks, gravel, or rock dust. It requires a high starting torque for their operation. Belted slip ring induction motor are employed because of their high starting torque.
Which type of jaw crusher has pivoting at the top?
Blake Crushers
Blake Crushers are Jaw Crushers with a movable jaw pivoted at the top, giving greatest movement to the smallest lumps. The throw of Blake jaw crushers is determined by the hardness of the ore as well as the size of the machine.
Why is primary crushing Done?
Primary crushers reduce large run-of-mine material, such as rocks and ore lumps, into smaller sizes for further processing downstream, whether that be transport to additional crushers or to a wet processing plant.
What is primary and secondary crusher?
The primary crusher is only for the breaking of large stones into pieces (this means primary crusher is not for the aggregate size material.). Examples of primary crushers are jaw crusher; hammer mill crusher and gyratory crusher. A secondary crusher comes into action and further reduces the size.
What is the difference between jaw crusher and cone crusher?
The jaw crusher requires that the ore feeding must be even and not full, the materials in the jaw crusher chamber shall not exceed 2/3 of the crushing chamber height. The cone crusher can feed the ore with full load. It can be directly fed materials without vibration feeder.
What is the difference between gyratory crusher and cone crusher?
The difference between the two is first the speed that the mantle travels while crushing the ore. In the Gyratory all the movement is in the bottom of the crusher mantle. This is due to the angle that the main shaft is on. The greater angle of the cone crusher puts the pivot point below the distributor plate.
Can you choke feed a jaw crusher?
Jaw crushers are routinely choke fed, as this maximizes production capacity and ensures particles are uniformly broken. This promotes stone-on-stone crushing, breaking up flaky or slabby particles. If you seek fewer fines, trickle feeding material into the jaw crusher could achieve this.
Which motor is used for the operation of jaw crusher?
squirrel cage induction motor
Normally in any ore beneficiation project squirrel cage induction motor is used as crusher motor. Since the rating of crusher motor is high, it is operated either with 6.6 KV or 11 KV.
Why toggle is used in jaw crusher?
A single-toggle jaw crusher pivots at the bottom of the swing plate, causing the jaw to move in an arc-like direction. The material is crushed when the moving crusher compresses it against the fixed plate.
What is TPH in crusher?
full form of tph in stone crusher full form of tph in stone crusher stone crushers form full form of tph in stone crusher Crushed stone or angular rock is a form of construction aggregate typically produced by mining a suitable rock deposit and breaking the removed rock down to the desired size using form of tph in …
What is the difference between primary and secondary crushing?
What is meant by primary crusher?
i. The first crusher in a series for processing shale or other rocks. See Also: secondary crusher.
