What lever class is a dolly?

A simple machine, like a two-wheeled dolly, can act as a class one or class two lever. Figure 4.6 shows that when the center of the mass is to the right of the fulcrum (axle) the dolly acts as a class one lever.

Where is the fulcrum on a wheeled cart?

The force is the push or pull used to move the load. The fulcrum is the wheel on the hand cart. Other examples of levers include a seesaw, a tennis racket, and a wheelbarrow.

Why is a dolly considered a lever?

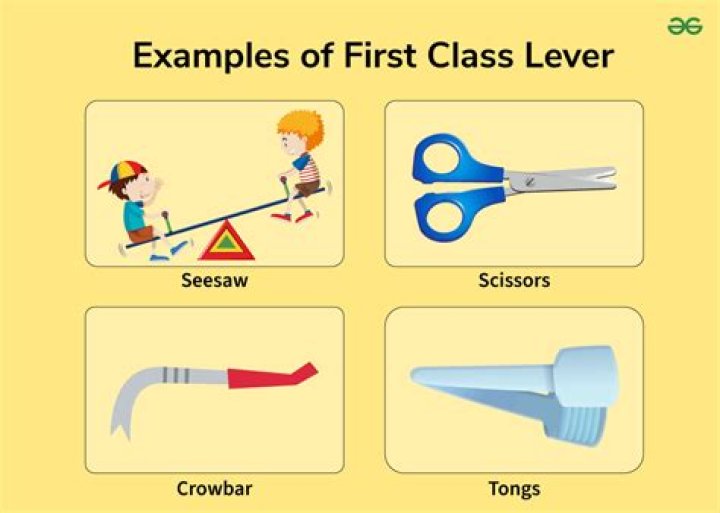

When you use a dolly to lift things it is considered as a first class lever. It is considered a first class lever because the wheels(fulcrum) is inbetween the effort(power) and the heavy objects. It is also a force multiplyer due to the load moving a larger distance, by doing this the force is applied.

What type of lever is a grabber?

Class three levers aren’t meant to have a good mechanical advantage, they are meant to provide a distance and speed advantage, therefore why our extension grabber represents a class three lever.

Is a wheelbarrow a class 1 lever?

First class levers have the fulcrum between the force and the load. In second class levers the load is between the effort (force) and the fulcrum. A common example is a wheelbarrow where the effort moves a large distance to lift a heavy load, with the axle and wheel as the fulcrum.

Is a doorknob a wheel and axle?

The fulcrum is the axle to which the wheel applies a force. For example, a doorknob is an example of a wheel and axle in which the knob itself acts as the wheel, and the shaft of the lockset acts like the axle.

What two simple machines make up a screw?

A screw is a simple machine that consists of an inclined plane wrapped around a cylinder or cone.

What is a class 2 lever?

In second class levers the load is between the effort (force) and the fulcrum. A common example is a wheelbarrow where the effort moves a large distance to lift a heavy load, with the axle and wheel as the fulcrum. In a second class lever the effort moves over a large distance to raise the load a small distance.

Is a hammer a wheel and axle?

But in science, a machine is anything that makes a force bigger. So a hammer is a machine. There are five main types of simple machine: levers, wheels and axles (which count as one), pulleys, ramps and wedges (which also count as one), and screws.

What two simple machines make a wheelbarrow?

A wheelbarrow is a compound machine that is popularly used to carry heavy loads. It has two simple machines, the wheel and axle and the lever that helps to make the load lighter and simpler to move around.

Is made of a wheel attached to a rod?

A wheel and axle is a simple machine made of a rod attached to the center of a wheel. A wheel and axle is a special kind of lever that moves or turns objects.

Is nut cracker class 2 lever?

A lever is a simple machine that helps lift and move objects. A nutcracker, for examples, is a class 2 lever. The nut is the load, and is in between the effort and the fulcrum. When the effort, your hand, applies a force on the handles, the other end of the nutcracker pivots to crack the nut.

Is a clock a wheel and axle?

Wheel-and-axle simple machines typically have moving parts: an axle and a wheel. Some examples of these types of simple machines include: Clocks: Clocks use an axle and a wheel to tell time, but grandfather clocks also use levers, pulleys, wedges, screws, axles and wheels as a complex machine.

What 2 simple machines make up a shovel?

The shovel as a simple machine The shovel consists of a wedge and a lever. The wedge is the shovel’s tip. When you stick a shovel into the earth, the tip transforms the driving force down the handle into forces that comes out from the blade.
