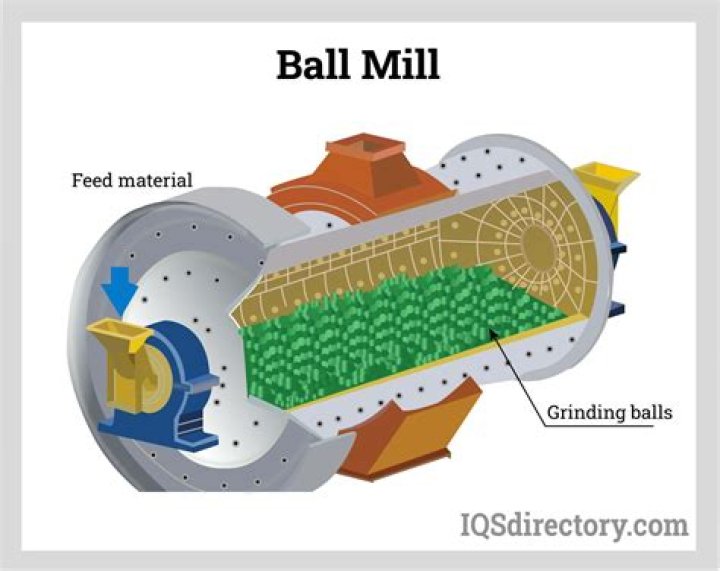

Which material is used in ball mill?

Food materials size reduction: Tumbling Mills The balls are normally made of steel or flint stones, while the rods are usually manufactured from high carbon steel.

What are the advantages of ball mill?

Advantages of Ball Mills 1. It produces very fine powder (particle size less than or equal to 10 microns). 2. It is suitable for milling toxic materials since it can be used in a completely enclosed form.

What is ball mill method?

Ball milling is a grinding method that grinds nanotubes into extremely fine powders. During the ball milling process, the collision between the tiny rigid balls in a concealed container will generate localized high pressure. Usually, ceramic, flint pebbles and stainless steel are used. 25.

What are advantages and disadvantages of ball mill?

Low efficiency, large energy consumption, high friction loss of grinding body and body, and it will pollute the product. Small ball mill is widely used in hard material grinding. There is a strong vibration and noise in operation process, so it must have a solid foundation.

What is the minimum speed at which ball mill operates called?

Explanation: The minimum speed at which ball mill operates is called Critical speed, under these conditions no resultant force acts on the mill and crushing is maximum. 9.

When the ball mill is centrifuging?

The point where the mill becomes a centrifuge is called the “Critical Speed”, and ball mills usually operate at 65% to 75% of the critical speed. Ball Mills are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns.

How do you empty a ball mill?

The best way is to discharge the product first by ammonia to let dissolve it and then some solvent(like sodium laural suplhate+ alkokal) and does the ball milling for 2-3 min. Remove solution. Repeat and finally take out everything and clean with cotton waste soaked in solvent.

How many balls are in a ball mill?

For example, the 100-150 tons ball mill has a maximum ball loading capacity of 9.5-10 tons. For the first time, 30% – 40% of the steel balls (120mm and 100mm), 40% – 30% of the medium balls (80mm) and 30% of the small balls (60mm and 40mm) were added.

What is the working principle of hammer mill?

The basic principle is straightforward. A hammer mill is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor.

Which speed is effective in ball mill?

Ball mills have been successfully run at speeds between 60 and 90 percent of critical speed, but most mills operate at speeds between 65 and 79 percent of critical speed. Rod mills speed should be limited to a maximum of 70% of critical speed and preferably should be in the 60 to 68 percent critical speed range.

How do you calculate ball mill speed?

The formula for critical speed is CS = 1/2π √(g/(R-r) where g is the gravitational constant, R is the inside diameter of the mill and r is the diameter of one piece of media. This reduced to CS = 265.45/√(R-r). Dry mills typically operate in the range of 50%-70% of CS and most often between 60%-65% of CS.

Which is the mill preferred for wet grinding?

Ball mills
Ball mills are used for grinding materials such as coal, pigments, and feldspar for pottery. Grinding can be carried out wet or dry, but the former is performed at low speed.

How do you increase ball mill output?

How to Improve Working Efficiency of Ball Mill

1. Control Feed Size.
2. Uniform Feeding.
3. Improve Material of Liner and Effective Volume of Cylinder.
4. Control Fill Rate and Mill Speed.
5. Choose Right Steel Ball Ratio.

How does a mill work?

The mill and its machinery are powered by the force of gravity as water pours over the water wheel and causes it to turn. As water flowed from the millrace on to the water wheel, troughs built into the water wheel filled, and the weight of the filled troughs brought them down and caused the wheel to turn.

Which mill is preferred for wet grinding?

What is percentage of tumbling mill speed?

Tumbling mills are normally operated at about 70–80% of the critical speed, which corresponds to maximum power input and is probably related to the transition between the cascading and cataracting regimes.

Which is the process for wet grinding?

Wet Grinding, also known as wet milling, is a process of taking materials in a liquid form or slurry and reducing particles, such as agglomerates, by breaking them apart or shearing them down in size. Since the early 1800’s companies have manufactured machines that were engineered to process wet materials.

Are water mills still used today?

Contemporary Uses Water mills are still used for processing grain throughout the developing world. Although the availability of cheap electricity in the early 20th century rendered water mills virtually obsolete, some historic water mills continue to operate in the United States.

How fast should a ball mill spin?

The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill.
