Does nozzle reduce pressure?

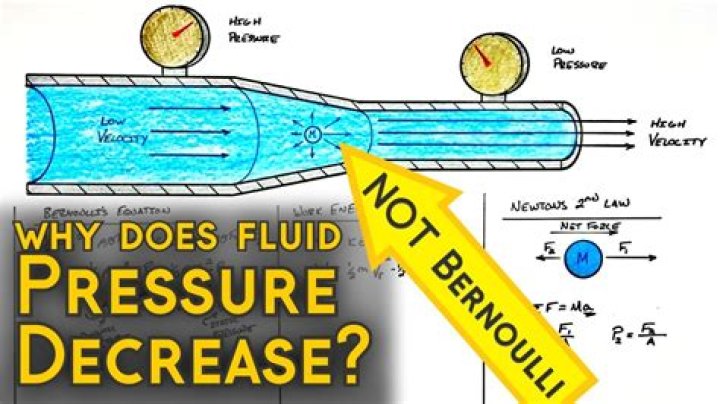

The pressure drops in a convergent nozzle because of the Bernoulli Principle. A nozzle is a spout on the end of a hose or pipe used to control the movement of a fluid like water or air. In this case, the energy that causes pressure is converted to another type of energy, so both pressure and area decrease.
What is nozzle theory?
The primary function of a nozzle is to channel and accelerate the combustion products produced by the burning propellant in such as way as to maximize the velocity of the exhaust at the exit, to supersonic velocity. …
Does a nozzle increase pressure?
Originally Answered: Pressure is indirectly proportional to area, but in a nozzle, the area decreases but the pressure also drops which converts the same into velocity. But why does this happen. As by physics, pressure should be increasing but it decreases.
Can a nozzle increase water pressure?
Pressure is proportional to area, but in a nozzle it drops, which converts the same into velocity. Pressure should be increasing but it is not. …
Why do vacuum engines have larger nozzles?
For engines with identical mass flow, this is a significant net thrust advantage (assuming that the divergent section is optimized for the exit conditions). Vacuum nozzles are longer in order to ‘capture’ the thrust available from what would be sub-atmospheric exhaust gas in a sea-level engine.
What is perfectly expanded flow?
Over-expanded flow continues as the back pressure ratio is decreased until a critical back pressure ratio is reached where the exit pressure is exactly equal to the back pressure. This type of flow is called perfectly-expanded flow or flow at design conditions.
What is back pressure in nozzle?
Backpressure refers to pressure opposed to the desired flow of gases in confined places such as a pipe. It is often caused by obstructions or tight bends in a confined space such as an exahust pipe and C-D nozzle.
What is flow nozzle?
The flow nozzles is a flow tube consisting of a smooth convergent section leading to a cylindrical throat area. The throat is the smallest section of the nozzle. Pressure taps are located on the upstream side of the nozzle plate and on the downstream side of the nozzle outlet.
How do you calculate flow rate of a nozzle?
3 Flow rate
- Any nozzle will produce certain flow rate at a given pressure differential.
- The flow rate for a given nozzle can be calculate by the following formula.
- Q= Flow rate.
- K = K factor for nozzle.
- P = Pressure differential at the nozzle.
- n = Is a constant that depends upon the spray pattern type.
How many types of engine nozzle are there?
Two basic types of injection nozzles are manufactured: pin nozzles – designated DC, DN ; mostly used in engines with indirect fuel injection (engines with precombustion chamber) hole nozzles – designated DO, DL, DOP, DLLA; used in engines with indirect fuel injection.
How do I increase water pressure in my pipes?
Pressure-Reducing Valve
- Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone.
- To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.
How do I increase the pressure on my hose?
Where to Start?
- Look for any leaks.
- Check whether the garden hose is correctly linked to the spigot and nozzle.
- Ensure the hose is not kinked/ twisted.
- Ensure there is no dirt and blockages in your garden hose.
- Check the pressure at your main supply.
- Connect your garden hose to a water pressure pump to increase the pressure.
