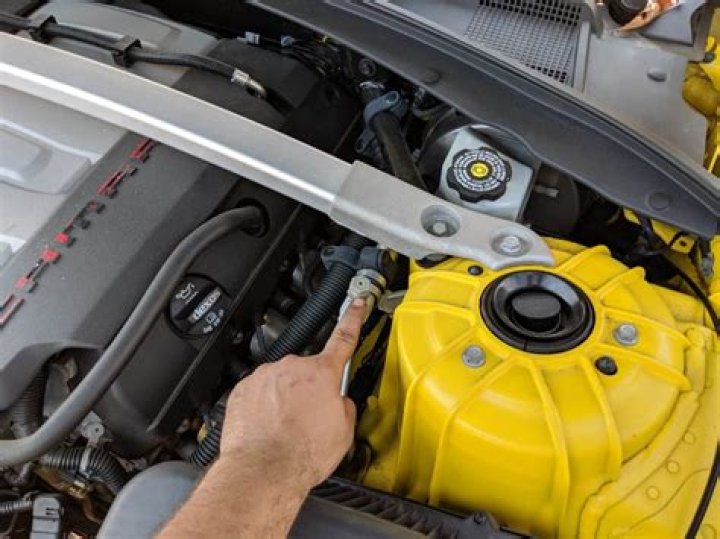

Where is the AC recharge port located?

The low side service port is usually located between the AC compressor and evaporator. The low side service port will have a black or blue plastic cap that needs to be removed.

What happens if you put Freon in the wrong port?

If you hook up to the wrong port the compressor can push refrigerant into the R134a canister under high enough pressure to cause it to burst. You always need to connect the canister to the LOW side. This way the compressor draws in the refrigerant. Refrigerant can spray out if the fitting is not connected properly.

Where do you put Freon high or low side?

The freon is added on the LOW PRESSURE SIDE ONLY. The hose tool you bought is made so you can only hook to the low side as the high side and low side fittings are different sizes and shapes for SAFETY’S SAKE.

Where is the low side of the AC?

The low side service valve is located in the line that runs from the compressor through the evaporator (firewall) and up to the condensor on the low pressure (suction) side of the system.

How do you put Freon in a Grand Am?

Open the low pressure valve on the low pressure side of the air conditioning gauge to begin filling the vehicle. Fill the vehicle until the scale reads 1.4 pounds. Once it reaches this weight, close the low pressure valve. Close the valve on the freon tank and remove the hose.

How long does it take to put Freon in an AC unit?

How Long Does It Take to Recharge a Home AC? While the thought of recharge may sound intimidating, it takes no longer than 5-10 minutes to fill in one pound of Freon. If your unit is low on refrigerant, you will need 2-4 lbs. per ton of AC cooling to refill the refrigerant to optimum levels.

How many cans of Freon does a car take?

Two cans will fill most modern cars. Very big or older cars might take 3 cans. # of cans depends on how low your system is.

Does AutoZone check Freon levels?

When it’s time for an AC recharge, turn to AutoZone. We carry R134a refrigerant, PAG46 oil, AC stop leak, AC system cleaner, and more. You can shop online for same day in-store pick up or go to your local AutoZone to find the right AC solution for you and your vehicle. AutoZone will test your car’s parts for free.

What color is the low side of an AC system?

Blue represents the low pressure side of the air conditioning system, and red represents the high pressure side. The low side service port is usually located between the AC compressor and evaporator. The low side service port will have a black or blue plastic cap that needs to be removed.

Do you charge AC on high or low side?

You only add refrigerant to the low side of the AC system. This helps draw in the refrigerant and prevents damage to the compressor. Normally the fittings are also different on the high/low sides to help facilitate this.

What should the high and low side pressures be?

Actual readings will vary according to ambient temperature. The low-side should be near 30 PSI at 90 degrees Fahrenheit or less. Pressure that is too much lower or higher shows there is a problem. On a properly working system, high-side pressure will be about twice the ambient temperature, plus 50 PSI.

How do I charge my AC in my car?

Recharge your AC in 7 easy steps:

1. Materials Needed:
2. Step 1: Turn on your AC.
3. Step 2: Determine if AC compressor is engaging.
4. Step 3: Test the pressure.
5. Step 4: Attach the recharge hose from the kit.
6. Step 5: Restart the vehicle and monitor the gauge.
7. Step 6: Thread the refrigerant can onto the recharge hose.

How do I know if my AC needs recharged?

1. Your A/C is Blowing Warm Air. One of the most obvious symptoms of low Freon levels is if your air conditioner is blowing warm or room temperature air.
2. Listen For The A/C Clutch to Engage.
3. Visible Refrigerant Leaks.
4. Your A/C is Blowing Warm Air.
5. Listen For The A/C Clutch to Engage.
6. Visible Refrigerant Leaks.

How much does it cost to add Freon to home AC?

Residential Air Conditioner Freon Refill Cost As mentioned earlier, Freon costs about $125 – $150 per pound. Most homeowners will pay in the range of $200 to $400 for a refill, depending on the type and size of their HVAC unit. If you own a larger r22 unit, you may have to spend $600 or more.

How do you know when your air conditioner needs Freon?

Signs your air conditioner needs freon

• Air conditioner is always running but it doesn’t cool your home.
• Vents are blowing warm air.
• Electric bills are higher than before.
• There is a buildup of ice on refrigerant line.
• A hissing or bubbling sound from the refrigerant line.
