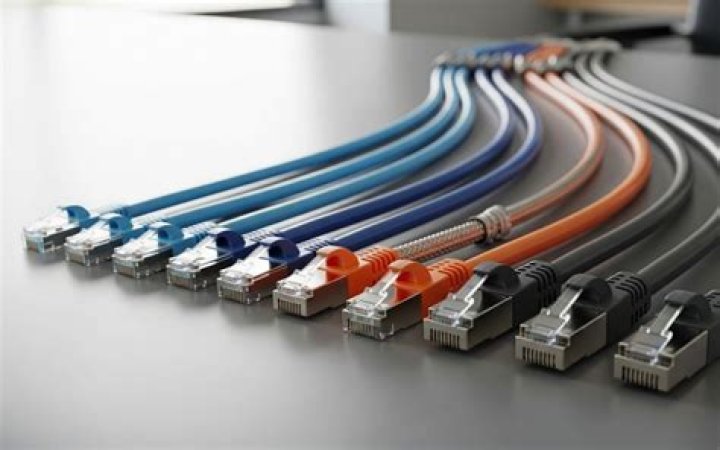

Why do Ethernet cables have different colors?

The colors of Cat5, Cat5e, Cat6 and Cat6a ethernet cables represent a specific application or system such as network connectivity or equipment connections. The color of the outer jacket has nothing to do with the cable function itself, it simply highlights the purpose of connection.

How do you color code an Ethernet cable?

A good way of remembering how to wire a Crossover Ethernet cable is to wire one end using the T-568A standard and the other end using the T-568B standard. Another way of remembering the color coding is to simply switch the Green set of wires in place with the Orange set of wires.

Is the blue or yellow Ethernet cable better?

There is no difference between yellow and blue ethernet cable at all. Both of the cables offers the same use. Typically different colored cables are used to make networking easy and recognizable especially when there are different types of network hardware used within a particular network.

What color Ethernet cable should I use for gaming?

It may prove difficult to decide which Ethernet cable brand or variety is the best. But the Cat 8 Ethernet cables are most common for gaming—meaning, any Cat 8 Ethernet cable is a viable option.

Why is my Ethernet cable orange?

The steady green or orange light on your Ethernet port usually means that an Ethernet cable is plugged in and connected to an active device on the other end. When the orange light is off, the connection speed is 10 Mbps. When the orange light is on, the connection speed is 100 Mbps.

What will happen if you do not follow color standard for fixing Ethernet cable?

Not following one or the other of those standards will cause no problems in a given setup, so long as pairing is maintained (e.g. don’t use green and white/brown as a pair). It will, however, cause whoever has to maintain things later despise you and curse you.

What is standard color coding for straight Ethernet cable?

Standard, Straight-Through Wiring Diagram(both ends are the same):

What do the 8 wires in an Ethernet cable do?

The 8 wires make up 4 pairs of transmit and receive. Think of them as lanes on a highway. In 10/100 Mbps speeds, 4 wires or 2 pairs are used, equating to a two lane highway in each direction. It allows decent traffic to pass but gets clogged easy if a few semis (read Ethernet streaming video) get on the highway.

Is the yellow Ethernet cable good?

Yellow Ethernet: Yellow ethernet cables are generally used for what’s known as “power over internet” (POE) connections. Interestingly, this standard was developed by the IEEE in 2009 to help classify these cords which deliver a 30W current at the level of the port when used with an ethernet twisted cable pair.

Does Ethernet cable give better ping?

Using an ethernet cable instead of a wireless connection will generally result in a lower ping. Unlike wireless methods, using ethernet is more reliable, offers lower latency and jitter, and is less likely to result in packet loss.

Why is my Ethernet port orange and not green?

If it’s green flashing, that means there is activity. If there is no LED light, then it’s either off or failing. Amber (orange) can also indicate a failing port or connection. Sometimes, it could be red or yellow, which can also mean bad connection or such.

What is the amber light on Ethernet?

Amber on – Operating as a Gigabit connection (1000 Mbps). Green on – Operating as a 100-Mbps connection. Off – Operating as a 10-Mbps connection.

Can a bad Ethernet cable cause packet loss?

When working on a wired network, the Ethernet cables can be the reason that you are experiencing packet loss. Any cable that is damaged or not connected properly will increase the electrical signals that travel along with the data that you’re sending. Dirty fiber connectors are also a significant source of packet loss.

Does ethernet use all 8 wires?

Gigabit ethernet (or 10/100/1000 Mbps) gets all its super-charged data power from using all four pairs, or all eight wires, when transferring the full 1000 Mbps of data from one computer to another.

Does RJ45 color order matter?

For making a standard cat 5 cable, you’ll want to arrange the color-coded wires in the same order on both ends. It actually doesn’t matter which order you put the colors in, as long as it’s the same on both ends.
